WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch

WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch — image 1
WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch — image 2
WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch — image 3
WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch — image 4
WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch — image 5
WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch — image 6
WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch — image 7
80%
20%
88%
Build Quality
91%
Thermal Performance
86%
Port Performance
89%
Power Input Flexibility
84%
Ease of Installation
83%
Value for Money
51%
Diagnostic Capability
92%
Certification Coverage
90%
Fanless Reliability
81%
Physical Footprint
79%
Long-term Durability
47%
Documentation & Support
85%
Compatibility
More

Overview

The WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch sits in a practical middle ground between cheap consumer hardware and premium-priced brands like Cisco or Phoenix Contact. Built for control panels, factory floors, and utility enclosures, it clips onto a DIN rail without fuss and draws power from whatever DC source is available on-site — 12, 24, 36, or 48 volts. That voltage flexibility alone saves integrators from sourcing a dedicated power supply in mixed-infrastructure environments. It is an unmanaged switch, so there is no configuration overhead, no VLANs, no QoS tuning. What you get is plug-and-play connectivity in a rugged metal shell designed to keep running where consumer gear would fail.

Features & Benefits

All 16 ports run at full gigabit speeds with auto MDI/MDI-X crossover, so cable orientation is never a concern during a rushed cabinet build. The operating temperature window — minus 30 to plus 75 degrees Celsius — is the real differentiator here. Cold storage facilities, outdoor roadside cabinets, and hot machine rooms all fall comfortably within spec. The IP30-rated metal housing keeps dust and fingers out without adding unnecessary bulk. Passive cooling means no fan bearings to seize after years of continuous operation. Overload and reverse polarity protections add a practical layer of insurance when wiring up in the field, and certifications covering UL, CE, FCC, RoHS, and REACH make it a viable choice for regulated manufacturing and utility environments.

Best For

This industrial Gigabit switch is most at home in industrial automation environments — think PLC networks, SCADA systems, and conveyor control panels where uptime is non-negotiable and nobody has time to manage switch configurations. Small system integrators building DIN rail control cabinets will appreciate how cleanly it fits alongside PLCs and I/O modules inside a standard enclosure. IT teams tasked with extending network infrastructure into warehouses, cold chain facilities, or outdoor kiosks will find the temperature tolerance and metal build reassuring. It also suits anyone dealing with legacy DC power infrastructure where 48V or 24V bus power is the norm. If you need port mirroring or SNMP monitoring, look elsewhere — but for simple gigabit throughput in tough conditions, it delivers.

User Feedback

The WIWAV 16-port DIN rail switch holds a solid 4.4-star rating across verified buyers, which reflects genuine field satisfaction rather than inflated scores. Most praise how quickly installation goes — power up, plug in, done. Build quality gets consistent compliments, and several users specifically mention stable performance through real temperature extremes. The most common complaint is also the most predictable: no power supply is included. It catches buyers off guard, though it is standard practice for industrial-grade hardware sold to integrators who source their own PSUs. A handful of reviews flag the minimal LED indicators as a limitation during fault diagnosis. A few isolated reports mention unusual behavior under heavy sustained load, but these appear rare. Relative to comparable branded alternatives, buyers frequently cite strong value.

#Switches
#Networking Products
#Computers & Accessories
#Electronics

Pros

  • All 16 ports run at full gigabit speeds with auto MDI/MDI-X, so cable types and orientation are never an issue on the job.
  • The operating range of -30°C to +75°C covers nearly every real-world industrial deployment scenario without derating.
  • Fanless passive cooling removes a common long-term failure point in continuous-duty environments.
  • DIN rail mounting with an included bracket makes cabinet installation clean and fast.
  • Accepts 12V, 24V, 36V, and 48V DC input, fitting naturally into most existing industrial power infrastructure.
  • IP30-rated metal housing holds up to dust and incidental contact in production environments.
  • Overload and reverse polarity protection adds a practical safety margin during field wiring.
  • Carries UL, CE, FCC, RoHS, and REACH certifications, satisfying compliance requirements in regulated industries.
  • Verified buyers consistently report easy installation and stable long-term performance under real temperature extremes.
  • At its price point, this industrial Gigabit switch competes favorably against similarly certified alternatives from more established brands.

Cons

  • No power supply is included in the box, which catches first-time buyers off guard and adds to the total deployment cost.
  • Being an unmanaged switch, there is no way to configure VLANs, monitor traffic, or prioritize bandwidth for specific devices.
  • LED indicators are minimal, making it harder to diagnose connectivity or speed issues without additional network tools.
  • Documentation and setup guides are sparse, which can slow down less experienced installers working without prior industrial switch experience.
  • A small number of users have reported inconsistent behavior under sustained heavy traffic loads, though these cases appear uncommon.
  • No redundant power input is available, which limits options for high-availability deployments that require failover power feeds.
  • Wall-mount use is supported but the bracket and form factor are clearly optimized for DIN rail, making wall installations feel like an afterthought.

Ratings

Our AI rating engine analyzed verified global reviews for the WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch, actively filtering out incentivized, bot-generated, and low-credibility submissions to surface what real engineers and integrators actually experienced. Scores reflect a transparent picture of both where this fanless switch genuinely earns its place in industrial deployments and where buyers have run into frustration. Strengths and shortcomings are weighted equally so you can make an informed decision before committing.

Build Quality
88%
The IP30-rated metal enclosure holds up convincingly in demanding installations — panel builders frequently note that the housing feels solid and shows no flex or rattling even after extended operation in vibration-prone environments. Multiple reviewers who deployed units in factory automation cabinets reported no physical degradation after months of continuous use.
While the metal shell is sturdy, the IP30 rating provides no moisture or liquid protection, which has frustrated buyers who assumed industrial-grade meant fully sealed. A small number of users noted that the terminal block connections felt less robust than the housing itself under repeated wiring cycles.
Thermal Performance
91%
The wide operating temperature window from -30°C to +75°C is the single most praised attribute among buyers who deployed this fanless switch in cold storage facilities, outdoor roadside cabinets, and hot machine rooms. Several integrators specifically called out stable, uninterrupted performance through seasonal temperature swings that would have caused consumer hardware to fail.
A handful of users operating at the upper end of the thermal range in poorly ventilated enclosures reported occasional instability, suggesting that sustained ambient temperatures near the maximum rating leave limited headroom. Passive cooling is reliable in most conditions but offers no active thermal management if enclosure design is poor.
Port Performance
86%
All 16 ports consistently negotiate gigabit speeds with auto MDI/MDI-X crossover handling cable type automatically, which integrators installing dozens of connections in a single cabinet found genuinely time-saving. Buyers running PLC and SCADA networks reported clean, stable throughput without dropped connections under normal industrial traffic loads.
A small but recurring thread in user feedback involves inconsistent behavior under sustained heavy traffic across all 16 ports simultaneously, pointing to possible buffer limitations at full load. LED indicators do not show per-port link speed, so confirming whether a port negotiated at 100Mbps or 1Gbps requires an external tool.
Power Input Flexibility
89%
Support for 12V, 24V, 36V, and 48V DC via a terminal block is a practical differentiator that lets this industrial Gigabit switch integrate directly into existing power busses without adding a dedicated AC-to-DC converter. Buyers working in telecom cabinets and legacy automation panels with 48V bus infrastructure specifically appreciated not having to source additional conversion hardware.
No power supply is included, which is standard for industrial hardware but still generates consistent complaints from buyers new to the industrial switch category. The DC-Jack pigtail included requires users to fabricate or purchase an appropriate connector for their specific power source, adding a small but real setup overhead.
Ease of Installation
84%
The built-in DIN rail bracket and true plug-and-play operation mean most panel builders report getting this fanless switch powered up and passing traffic within minutes of opening the box. No software, drivers, or configuration utilities are needed, which experienced integrators working through a multi-cabinet project found refreshingly straightforward.
The lack of included documentation beyond basic labeling means less experienced installers can face uncertainty around terminal block wiring and grounding best practices. Wall-mount installation, while supported, feels like a secondary use case and the bracket geometry is less intuitive outside of a DIN rail context.
Value for Money
83%
Relative to comparably certified managed industrial switches from established brands, buyers consistently describe the WIWAV 16-port DIN rail switch as offering strong hardware quality and certifications at a meaningfully lower cost. Integrators who deploy multiple units per project cited total-project savings as a key reason for returning to this product.
When the cost of a separately sourced DC power supply is factored in, the effective price creeps closer to some entry-level competing options, reducing the value gap slightly. Buyers who later needed managed features found they had to replace the switch entirely, making the initial saving feel less compelling in retrospect.
Diagnostic Capability
51%
49%
Basic per-port link and activity LEDs do confirm whether a cable is seated and whether data is moving, covering the most fundamental field checks during initial installation. For straightforward PLC connectivity tasks where everything either works or clearly does not, this level of feedback is often sufficient.
The limited LED set is one of the most consistently criticized aspects of this switch among technically demanding users. There are no speed-negotiation indicators, no error-rate signals, and no remote monitoring capability whatsoever, meaning any non-obvious network fault requires external diagnostic tools to isolate.
Certification Coverage
92%
Holding UL, cUL, CE, FCC, PSE, RoHS, and REACH certifications is a genuinely strong compliance package that opens doors in regulated manufacturing, utility, and government-adjacent deployments where unlisted hardware is simply not acceptable. Procurement teams in compliant facilities consistently flag this as a deciding factor.
Despite the strong certification list, there is no IEC 61850 or ATEX rating, which excludes the switch from certain utility substation or hazardous-area applications where those specific standards are mandatory. Buyers in those niches will need to look at more specialized hardware regardless of the general certification breadth.
Fanless Reliability
90%
Eliminating the fan removes what is statistically one of the highest failure-rate components in continuously operating electronic hardware, and long-term users of this fanless switch report multi-year deployments with no hardware failures attributed to thermal management. This is particularly valued in remote or hard-to-service installations where unplanned maintenance is costly.
Passive cooling places full responsibility on enclosure design and ambient airflow, which means improper cabinet ventilation can push the switch toward its thermal ceiling faster than expected. Users who installed units in sealed cabinets without thermal management reported higher surface temperatures that raised concern even if operation remained technically within spec.
Physical Footprint
81%
19%
At roughly 7 x 4.7 x 1.8 inches and just under 1.5 pounds, this industrial Gigabit switch occupies a modest slice of DIN rail real estate, which matters enormously when sharing a control cabinet with PLCs, relays, circuit breakers, and terminal blocks. Integrators managing tight panel layouts appreciated being able to fit a 16-port switch without reorganizing the entire cabinet.
While compact for a 16-port industrial unit, it is noticeably larger than consumer-grade desktop switches of the same port count, which occasionally creates layout challenges when retrofitting into existing panels that were not originally designed for an industrial switch of this size.
Long-term Durability
79%
21%
Units that have been in service for over two years appear frequently in positive follow-up reviews, with owners reporting no port degradation, no power input failures, and consistent performance across seasons. The metal housing and absence of moving parts contribute to a durability profile that exceeds typical consumer hardware by a significant margin.
A subset of users has reported unexpected port failures or unit failures occurring outside of extreme conditions, with no clear pattern tying them to specific voltage inputs or load levels. These reports are a minority but are notable enough that some integrators deploy a spare unit on larger projects as a precaution.
Documentation & Support
47%
53%
For experienced integrators familiar with industrial unmanaged switches, the minimal documentation is rarely a blocker — the hardware is simple enough that the included labeling and basic spec sheet cover the essentials for a confident installation. Technical specifications are accurate and consistent with what ships.
Buyers without prior industrial networking experience frequently describe the documentation as inadequate, with no detailed wiring diagrams, grounding guidance, or troubleshooting flowcharts included. Manufacturer support responsiveness has received mixed feedback, with some users reporting slow or unhelpful responses to technical queries submitted post-purchase.
Compatibility
85%
IEEE 802.3/802.3u/802.3x compliance and standard RJ45 gigabit interfaces mean the switch works with essentially any modern Ethernet-capable industrial or commercial device without compatibility concerns. Buyers connecting a mix of PLCs, HMIs, IP cameras, and industrial PCs across the same switch reported no interoperability issues.
The lack of any SFP fiber uplink ports limits deployment scenarios where long-distance or electrically isolated connections between network segments are needed. In larger facilities requiring fiber backbone links into the switch, buyers must add a separate media converter, adding cost and complexity to the installation.

Suitable for:

The WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch is a strong fit for system integrators, automation engineers, and industrial IT professionals who need reliable, no-fuss gigabit connectivity in demanding physical environments. If you are building or maintaining control panels with DIN rail layouts — housing PLCs, HMIs, or SCADA equipment — this switch drops right in without requiring any special mounting hardware. The wide DC input range covering 12V through 48V makes it practical in legacy industrial facilities where AC power conversion is not always available at the cabinet level. Anyone deploying networking gear in cold storage warehouses, outdoor enclosures, or factory floors where temperatures swing well beyond what consumer hardware tolerates will find the operating range genuinely useful. Small manufacturers and OEM panel builders looking to keep costs reasonable without sacrificing build quality relative to premium-tier alternatives will likely appreciate the value proposition here.

Not suitable for:

Network administrators or IT teams who need traffic visibility, VLAN segmentation, port mirroring, or any form of remote management should look at managed industrial switches — the WIWAV WDH-16GT-DC 16-Port Gigabit Industrial Ethernet Switch offers none of those capabilities by design. If your deployment requires SNMP monitoring, QoS prioritization for VoIP or video traffic, or redundancy protocols like RSTP, this is simply the wrong category of hardware. Buyers who expect a complete out-of-box solution should also be aware that no power supply is included, which means budgeting and sourcing a compatible DC PSU separately before installation. Home users or small office environments looking for a basic network switch would be overpaying for industrial certifications and rugged construction they will never actually need. If detailed fault diagnostics are critical to your operation, the limited LED indicator set on this unit may frustrate your team during troubleshooting.

Specifications

  • Port Count: The switch provides 16 x RJ45 ports, each supporting 10/100/1000Mbps auto-negotiation for full gigabit connectivity across all connections simultaneously.
  • Switch Type: This is an unmanaged switch, meaning it operates plug-and-play with no configuration interface, CLI, or web management available.
  • Power Input: Accepts a wide DC input range of 12V, 24V, 36V, or 48V via a terminal block connector, accommodating diverse industrial power bus standards.
  • Included Cables: A DC-Jack power pigtail and ground cables are included in the box; no external power supply unit is provided.
  • Operating Temp: Rated for continuous operation between -30°C and +75°C (-22°F to 167°F), suitable for cold storage, outdoor enclosures, and high-heat industrial spaces.
  • Housing Rating: The metal enclosure carries an IP30 rating, providing protection against solid objects larger than 2.5mm but no rated water or moisture resistance.
  • Mounting Options: Ships with a built-in DIN rail bracket and also supports wall-mount installation using the same integrated hardware.
  • Dimensions: The unit measures approximately 7.01 x 4.72 x 1.77 inches (178 x 120 x 45mm), compact enough for standard industrial control cabinet rails.
  • Weight: The switch weighs approximately 1.43 pounds (0.65kg), keeping DIN rail load impact minimal in fully populated enclosures.
  • Cooling Method: Passive fanless cooling is used exclusively, eliminating rotating components and the mechanical wear associated with fan-based thermal management.
  • Ethernet Standards: Compliant with IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX), and 802.3x (full-duplex and flow control) standards.
  • Port Crossover: All 16 ports support automatic MDI/MDI-X crossover, removing the need to distinguish between straight-through and crossover cables during installation.
  • Certifications: Holds UL, cUL, CE, FCC, PSE, RoHS, and REACH (SVHC) certifications, covering North American, European, and Japanese safety and environmental compliance requirements.
  • Protections: Built-in overload protection and reverse polarity protection guard against wiring mistakes and power anomalies in field installations.
  • Data Transfer Rate: Each port supports a maximum data transfer rate of 1000 Mbps (1 Gbps) under full-duplex operation.
  • Model Number: The official manufacturer model number is WDH-16GT-DC, produced by WIWAV INC.
  • Market Rank: Ranked #637 in the Computer Networking Switches category on Amazon at the time of review, reflecting strong sustained sales volume.
  • First Available: This product was first listed for sale in July 2017, indicating a multi-year production track record with no discontinuation notice from the manufacturer.

Related Reviews

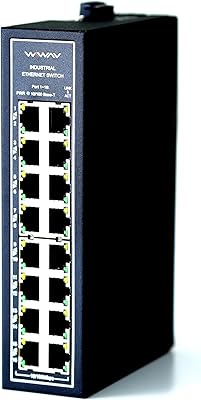

WIWAV WDH-16ET-DC 16-Port Industrial Ethernet Switch
