ORION CB693 6x9″ Coaxial Car Speakers

76%

24%

Bass Response

Treble Clarity

Mid-Range Performance

Overall Sound Quality

Installation Ease

Build Quality

Durability

Value for Money

Compatibility

Packaging & Included Accessories

Sensitivity & Headroom

Grille Quality

Performance with Amplifier

Overview

The ORION CB693 6x9″ Coaxial Car Speakers are part of Orion's Cobalt series — a line aimed squarely at drivers who want a meaningful step up from factory audio without committing to a full system build. This is a 3-way coaxial pair, meaning the woofer, mid-range driver, and tweeter all live in a single unit, keeping installation clean and straightforward. The speakers are rated at 80W RMS — the number that actually matters day to day — with a 4-ohm impedance that plays nicely with most stock and entry-level aftermarket head units. Grilles come included, which is a small but genuinely appreciated detail. Having been on the market since 2016, there is a solid body of real-world owner experience to draw from.

Features & Benefits

What separates these Orion coaxials from cheaper alternatives comes down to a few deliberate material and design choices. The butyl rubber surround is a meaningful upgrade over the foam surrounds common in budget speakers — it holds its shape longer and contributes to tighter, more controlled bass. The polypropylene cone handles mid and low frequencies without adding unwanted coloration. Sensitivity sits at 88 dB, enough to get usable volume from a factory head unit without an amplifier. One honest caveat: the frequency response starts at 80Hz, so anyone expecting real low-end thump will still need a dedicated subwoofer. The included custom-molded grilles protect the cones and give the install a cleaner finished look at no extra cost.

Best For

The CB693 speakers are a natural fit for a fairly specific type of buyer. If your factory speakers have started sounding thin or distorted and you want a noticeable improvement without touching an amplifier or rewiring half your car, this Cobalt Series pair is worth serious consideration. They drop into most 6x9-inch rear deck locations — common in sedans, hatchbacks, and older trucks — without requiring custom brackets or fabrication, though checking your vehicle's mounting depth before buying is always smart. Running a modest head unit and want cleaner, fuller sound on a reasonable budget? These fit that brief well. Audiophiles chasing reference-grade imaging will likely need to look at a higher price tier.

User Feedback

Owner experiences with these Orion coaxials tend to cluster around two themes: pleasantly surprised by the bass response for the price tier, and somewhat divided on how the high end handles really loud volumes. Most buyers running them off a factory head unit report a solid, full-sounding upgrade — particularly noticeable in the mid-bass range. Where opinions split is at the tweeter; some find it crisp and detailed, while others describe a slight harshness when pushed hard. Feedback on long-term durability is generally positive, with the butyl surround holding up better than many owners anticipated. A handful of buyers note these edge out similarly priced Pioneer options on bass, though Pioneer tends to be preferred for mid-range clarity.

#Coaxial Speakers

#Speakers

#Car Audio

#Car Electronics

#Car & Vehicle Electronics

#Electronics

Pros

Butyl rubber surround holds up longer than foam alternatives found in similarly priced competitors.
Three-way coaxial design delivers noticeably more balanced sound than basic two-way factory replacements.
Works well off a stock head unit — no amplifier required to get satisfying volume.
Custom-molded grilles come in the box, saving you an extra purchase and keeping the install tidy.
Universal 6x9-inch mounting pattern makes fitting these Orion coaxials straightforward in most vehicles.
Mid-bass response earns consistent praise from owners who compare directly to what they replaced.
At 80W RMS, the real-world power handling is honest and appropriate for the price tier.
Installation is beginner-friendly, with clearly marked terminals and no need for special tools or adapters.
Long-term durability feedback from multi-year owners is generally positive, especially regarding surround integrity.
Sold as a complete pair, making this a ready-to-install solution right out of the box.

Cons

Sub-bass below 80Hz is absent — a dedicated subwoofer is still necessary for true low-end impact.
The tweeter can sound harsh or fatiguing when pushed to high volumes for extended periods.
Mid-range clarity at loud listening levels draws more mixed reactions than the bass performance does.
Mounting depth compatibility is not universal — a poor fit is possible depending on your specific vehicle.
The 320W peak rating is a marketing figure; real continuous power handling is a much more modest 80W RMS.
No waterproofing means these are strictly for interior cabin use, ruling out marine or open-air applications.
Buyers upgrading from higher-tier brands may find the overall soundstage and imaging underwhelming by comparison.
Performance gap between factory head unit and amplified setups is significant enough to frustrate some owners.
No built-in crossover fine-tuning means you have limited control over how frequencies are distributed between drivers.

Ratings

The scores below reflect an AI-driven analysis of verified global owner reviews for the ORION CB693 6x9″ Coaxial Car Speakers, with spam, bot-generated, and incentivized submissions actively filtered out before scoring. Each category captures both the genuine strengths buyers praised and the recurring frustrations they reported, giving you a transparent, balanced picture of what to expect. No score has been softened or inflated — if a category underperforms, that is reflected honestly here.

Bass Response

78%

22%

For a coaxial speaker in this price tier, the mid-bass punch consistently impressed owners — particularly those replacing thin, worn factory speakers in sedans and hatchbacks. Daily commuters who listen to rock, pop, and R&B reported a noticeably fuller low end without needing a separate subwoofer for casual listening.

The frequency response floor sits at 80Hz, so true sub-bass is simply absent. Buyers who expected deep low-end reproduction from these alone — especially fans of bass-heavy genres — frequently noted the disappointment and eventually added a subwoofer to compensate.

Treble Clarity

66%

34%

At moderate volumes, the 2.5-inch tweeter handles high-frequency detail reasonably well, and owners listening to acoustic or vocal-forward music appreciated the added airiness compared to factory speakers. The three-way design does give the tweeter more room to do its job cleanly than a basic two-way coaxial would.

Push the volume past about 75 percent and a recurring complaint emerges: the tweeter starts to sound brittle and fatiguing. This was one of the most consistent criticisms across owner reviews, and listeners who habitually drive at high volumes found it a genuine long-term irritant.

Mid-Range Performance

63%

37%

Voices and mid-frequency instruments come through with more presence than typical factory speakers, and the separation between the woofer and tweeter gives the mid-range a bit more breathing room than a two-way design allows. For talk radio and podcast listeners, the improvement over stock is immediately audible.

Mid-range clarity under load is where these Orion coaxials show their price-tier ceiling. At higher volumes, instruments and vocals can start to blur together, and owners who compared them directly against Pioneer or Rockford Fosgate units in the same bracket often found the mid-range imaging of competitors slightly more defined.

Overall Sound Quality

74%

26%

As a complete package, the CB693 speakers deliver a genuine and noticeable upgrade over the baseline factory audio found in most mainstream vehicles. The three-way architecture brings a sense of audio balance that single-driver factory speakers simply cannot match, making everyday listening more engaging without requiring any additional components.

Audiophiles and enthusiasts coming from higher-tier component speaker setups will likely find the soundstage narrow and the overall detail resolution underwhelming. These are capable daily-driver speakers, not precision audio instruments, and the gap becomes obvious on complex, layered recordings played at loud volumes.

Installation Ease

88%

The clearly marked terminals, standard bracket mount, and universal 6x9-inch footprint make this one of the more approachable DIY speaker swaps available. First-time installers consistently reported completing the job with basic hand tools, and the included grilles meant no separate shopping trip was needed to finish the install cleanly.

Mounting depth compatibility is not universal, and a meaningful number of owners ran into fitment issues in vehicles with shallow door cavities or tight rear deck configurations. Checking your specific vehicle's mounting depth before purchasing is essential — the process is not as plug-and-play as the marketing implies for every car.

Build Quality

72%

28%

The butyl rubber surround is a standout construction choice at this price point, and multi-year owners have noted that it holds its shape and flexibility better than foam surrounds typically used by similarly priced competitors. The polypropylene cone also resists warping in the heat conditions typical of a closed car cabin.

The overall feel of the speaker basket and housing is functional rather than premium, and the included grilles, while included and properly fitted, feel noticeably lightweight. Buyers expecting solid, weighty construction comparable to higher-end car audio brands will find the build acceptable but unremarkable.

Durability

79%

21%

The butyl rubber surround has been the key driver of positive long-term durability feedback, with owners reporting that the speakers still perform well after two to three years of regular daily use. The polypropylene cone also shows good resistance to temperature-related warping, which is a common failure point in budget speaker cones.

Some owners flagged that the tweeter assembly showed signs of wear faster than the woofer section over extended high-volume use. Long-term reliability beyond three to four years is harder to assess given that the feedback pool thins out significantly past that point.

Value for Money

83%

Across the owner review pool, value for money was the single most frequently praised attribute. Buyers who compared these directly to factory speaker replacements in the same budget range found the CB693 punched noticeably above what its price implied, particularly given the butyl surround, three-way design, and included grilles.

The value proposition starts to weaken if you need to add an amplifier to get the best out of them, since the all-in cost climbs quickly. A handful of owners also noted that competing brands offer comparable or slightly better sound at a similar price point if you shop carefully.

Compatibility

81%

19%

The 4-ohm impedance and 88 dB sensitivity make these a broadly compatible choice for factory head units and entry-level aftermarket receivers alike, and most owners reported no impedance mismatch issues. The standard 6x9-inch mounting footprint covers a wide range of vehicles without the need for adapters in the majority of cases.

Compatibility drops off for vehicles with non-standard baffles or deeper-than-average mounting cavities, and these speakers carry no waterproof rating, ruling out any marine or open-air application entirely. Buyers should also confirm compatibility with their specific head unit output wattage before assuming the sensitivity rating is sufficient for their setup.

Packaging & Included Accessories

76%

24%

Including two custom-molded grilles in the box is a practical and genuinely appreciated touch that many competitors skip at this price tier. The packaging itself arrived without damage in the overwhelming majority of owner reports, and the speakers were adequately protected for standard shipping conditions.

Beyond the speakers and grilles, nothing else is included — no wiring harness adapters, no mounting hardware beyond what is on the speakers themselves, and no installation guide beyond basic labeling. Buyers new to car audio should budget for additional materials before starting the install.

Sensitivity & Headroom

77%

23%

The 88 dB sensitivity rating is efficient enough that most factory head units can drive these to satisfying listening volumes without clipping or distortion at moderate output levels. Owners who paired them with even a modest aftermarket amplifier reported a noticeably larger dynamic range and improved headroom.

Once you push past 80 percent volume on a factory head unit, some owners reported audible compression and loss of dynamic clarity, suggesting the speakers benefit more than average from clean amplification. The headroom ceiling is real and can be frustrating for drivers who listen loud without an amp in the chain.

Grille Quality

61%

39%

The custom-molded grilles fit the speakers correctly without rattling or requiring modification, which is more than can be said for many generic aftermarket grilles sold separately. They provide adequate physical protection for the cone and give the rear deck or door panel a finished, intentional appearance.

The grilles feel noticeably lightweight and plasticky in hand, and several owners questioned their long-term durability under repeated handling or removal for cleaning. They do the job, but expecting premium-feeling build quality here would be setting the bar too high for what this price tier delivers.

Performance with Amplifier

84%

Owners who paired these Orion coaxials with even a modest four-channel amplifier reported a substantial jump in clarity, separation, and overall listening enjoyment. The three-way design responds well to cleaner, more powerful input, and the bass tightens up noticeably when the woofer is no longer relying solely on head unit output.

The performance gap between running amplified versus unamplified is wide enough that some buyers felt the speakers were not truly showing their capability until an amp was added — which raises a fair question about whether the factory-head-unit use case is really where these shine most.

Suitable for:

The ORION CB693 6x9″ Coaxial Car Speakers are a strong match for everyday drivers who are tired of the flat, lifeless sound that comes with most factory-installed speakers and want a real improvement without rebuilding their entire audio setup. If your car already has 6x9-inch cutouts — common in the rear decks of many sedans, hatchbacks, and older trucks — these drop in with minimal effort and no custom fabrication. They work particularly well for people running a stock head unit, since the 88 dB sensitivity rating means you get decent volume without needing an external amplifier. DIY-minded buyers will appreciate the clearly marked terminals and the fact that grilles are already included, so there are no extra trips to the parts store. Anyone on a realistic mid-range budget who wants noticeably better clarity and fuller bass from their daily commute audio will find these Orion coaxials hit a practical sweet spot.

Not suitable for:

The ORION CB693 6x9″ Coaxial Car Speakers are not the right call for buyers who have serious, bass-first listening expectations. The frequency response rolls off at 80Hz, meaning anything below that — the deep, chest-felt low end from hip-hop, EDM, or bass-heavy rock — simply will not be there without a separate subwoofer in the system. Audiophiles chasing precise stereo imaging, nuanced mid-range detail, or high-volume listening without any tweeter strain will likely find this Cobalt Series pair falls short of their standards and should budget for a higher-tier component speaker setup instead. These speakers are also not suited for outdoor or marine use, as they carry no waterproofing whatsoever. And if your vehicle has non-standard mounting depths or tight baffle clearances, fit is not guaranteed — always verify the mounting specs against your specific door or deck before committing.

Specifications

Speaker Size: Each speaker measures 6x9 inches, fitting the standard 6x9-inch cutouts found in many vehicle rear decks and doors.
Configuration: Three-way coaxial design integrates a woofer, mid-range driver, and tweeter into a single unit for full-range audio reproduction.
RMS Power: Continuous power handling is rated at 80W RMS per speaker, which reflects real-world sustained performance under normal listening conditions.
Peak Power: Peak power rating reaches 320W, representing the maximum momentary power each speaker can handle in brief bursts.
Impedance: Each speaker carries a 4-ohm impedance rating, making them compatible with the vast majority of factory and aftermarket head units.
Sensitivity: Sensitivity is rated at 88 dB, meaning these speakers produce usable output volume even when driven by a modest factory head unit.
Frequency Response: Audio coverage spans 80Hz to 20kHz, handling mid-bass through upper treble but requiring a subwoofer for frequencies below 80Hz.
Cone Material: The main woofer cone is constructed from polypropylene, a material chosen for its light weight, rigidity, and resistance to moisture-related warping.
Surround Material: Butyl rubber is used for the speaker surround, offering greater longevity and more consistent bass response than foam surrounds common in budget speakers.
Tweeter Size: The integrated tweeter measures 2.5 inches in diameter and handles high-frequency audio reproduction within the coaxial assembly.
Signal-to-Noise Ratio: The signal-to-noise ratio is rated at 91.5 dB, indicating a relatively clean audio signal with low background noise at typical listening volumes.
Grilles: Two custom-molded grilles are included in the package, providing physical protection for the cones and a finished appearance after installation.
Waterproofing: These speakers carry no waterproof or water-resistant rating and are intended exclusively for enclosed interior cabin use.
Mounting Type: Installation uses a standard bracket mount configuration compatible with universal 6x9-inch speaker locations requiring no custom fabrication in most vehicles.
Package Contents: The box includes two speakers and two custom-molded grilles, providing everything needed for a basic speaker swap in a compatible vehicle.
Item Weight: The complete package weighs approximately 4.95 pounds, reflecting the combined weight of both speakers and their included grilles.
Warranty: Orion covers these speakers under a limited warranty; buyers should confirm the current warranty duration and terms directly with the manufacturer or retailer at purchase.
Series: The CB693 belongs to Orion's Cobalt series, which is positioned as a value-oriented line targeting drivers upgrading from factory-installed audio components.

Related Reviews

CT Sounds BIO-6X9-COX 6×9 Coaxial Car Speakers

76%

Value for Money

Sound Clarity

Bass Response

Ease of Installation

Tweeter Performance

JBL GX9628 6x9 Coaxial Car Speakers

79%

Sound Quality

Power Handling

Impedance Compatibility

Ease of Installation

Build Quality

STINGER HC-69 6x9 Coaxial Car Speakers

83%

Sound Clarity

Bass Performance

Installation Ease

Overall Value

Build Quality

NVX NSP69 6×9 Coaxial Car Speakers

77%

Sound Clarity

Bass Output

Installation Ease

Build Quality

Value for Money

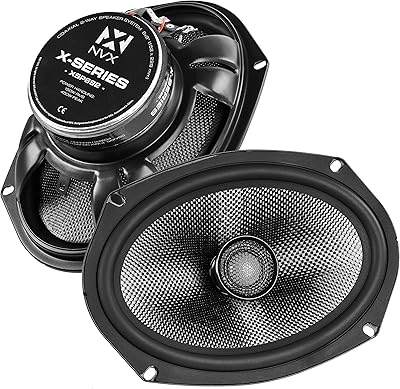

NVX XSP692 6x9 2-Way Coaxial Car Speakers
